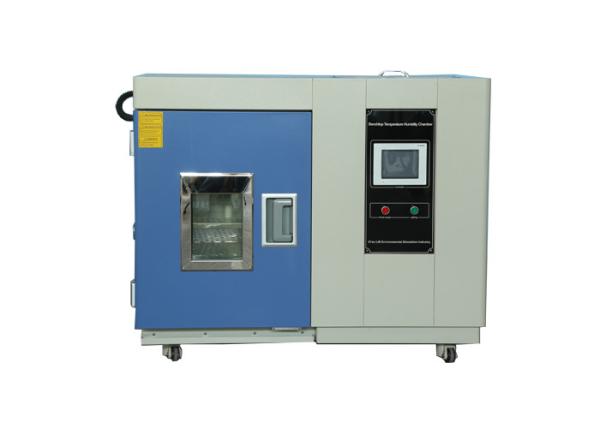

TH-80 Temperature Humidity Chamber / T-50 Benchtop Environmental Simulation Chamber
Description
Humidity Temperature environmental simulation chamber included temperature only chamber, temeprature humidity chamber, fast change rate temperature test chambers, thermal cycle chambers, benchtop ovens.In research and development laboratories, the functionality and usability of a product are determined at a very early stage.Temperature Humidity Environmental Simulation Chamber PLC Temperature Humidity Stability Test Chamber For Cold Damp Heat Dry Heat Testing.
Application
Humidity Temperature environmental simulation chamber is widely used in the temperature variation test, cold resistance test and storage with low-temperature in the foelds of aerospace, aviation, electronics, instrument, electric products, materials, parts and components and equipment to analyze and evaluate the property and performance of the sample under thr simulated conditions.
Main Technical Parameter
| Model | TH-80 |
| Internal dimension (mm) | 400*400*500 |
| Overall dimension (mm) | 900×1100×1000 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Standard Features
-
Temperature control and display unit
-
Humidity control and display unit
-
Temperature sensor PT-100 , Resolution: ± 0.001 ℃
-
Programmable color LCD touch screen controller
-
Viewing window with interior lighting.
-
2 pieces of adjustable and removable shelving
-
Bottom install 4 castors for ease moving, and with brakes function
-
Programs reach to 999 groups and 999 sections
-
Safety protection system
-
Can perform long time 85 °C/85 % RH tests
Test Cycle
Design and Construction
Test area
Material of the test cabinet is high quality SUS304 stainless steel.
Test hole, sealed with silicone screw plug.
Temperature sensor Pt100 platinum
Humidity sensor dry and wet bulb
2 pieces of adjustable and removable shelves
Air Circulation
Air circulation fans in the workroom of the chamber.
The real wall of test area equipped with chip-type wind board.
Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.
Cooling System
Mechanical compression refrigeration system
Refrigerating unit is French TECUMSEH compressor.
Two cascade compressor
Environment friendly refrigerant R404a for first stage,
R23 for the second stage
Humidity System
External isolation, stainless steel surface evaporation humidifier
Automatic water supply
Control Panel
PLC controller
Programmable color display touch screen controller.
Programs reach to 999 groups and 999 sections
RS-232 /RS-485 interface, PC Link, LAN network
Safety Protection
Over temperature protection
Water shortage protection
Humidifier dry combustion protection
Refrigerant high pressure protection
Over current protection
Earth leakage protection
Packing & Shipping
Export Standard Wooden Box.
Gross Weight: 329KG, Package size(mm): 1330x1050x1260
Can be used for Sea, Air, Railway, Truck transportation,TNT,Fedex,UPS,EMS.
Our Service
3 Years Warranty, Lifelong Follow-up Services.
Training how to install and operate the machine.
Training how to maintain the machine.
Response within 24 hours once got questions from customers.
Send spare parts within 2 days after got notice.
Engineers available to service machines overseas to install and commissioning.
