Economical Salt Mist Corrosion Salt Spray Environmental Simulation Chamber
Description
Economical Salt Mist Corrosion Salt Spray Environmental Simulation Chamber is adopt the way of salt fog corrosion to detect the reliability of the measured samples respectively, corrosion resistance, salt fog box adopts FRP, resistance to high temperature, the temperature can reach 120 ℃, acid-proof alkali, copper sulfate.
Application
Economical Salt Mist Corrosion Salt Spray Environmental Simulation Chamber is widely used in electronic, electrician, automobile, aviation, mobile phone communication, motorcycle, plastic, electronic components, metal material surface plating (coating) layer, mechanical parts and other accelerated corrosion performance changes, the overall or protective layer of salt spray corrosion test
Main Technical Parameter
| Model | S-150 |
| Internal dimensions (mm) | 470*590*400 |
| Overall dimensions (mm) | 620*1400*1050 |
| Temperature range | Ambient ～60℃ |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ℃ |
| Temperature deviation: | +/- 2.0 ℃ |
| Test time | 1~999 hours, settable |
| Spray deposition | 1～2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |
| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| Temperature sensor | PT100Ω / MV A-class |
| Salt fog collected | Fog collector and fog measure cylinder |
| Salt water preheating | Saturated air barrel |
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Power Supply | 220V 50HZ |
Standard Features
Material is Glass fiber reinforced plastics
Temperature control and display Unit
Spray deposition is 1～2ml / 80cm2 · h
Temperature sensor PT-100 MV A-class
Corrosion-resistant atomizer tower with quartz spray nozzles
2 fog collectors in cabinet
4 castors with brakes function
Standard sample holders
Hydrostatic hood seal
Exhaust pipe & drain pipe
Protection System
Design and Construction
Fog Chamber
Fog chamber is made from glass fiber reinforced plastics,
Material is corrosion resistance, anti-aging, high strength.
Hydrostatic hood seal
Test specimen bracket / holder
Atomizer Tower and Spraying
Corrosion-resistant atomizer tower
Quartz spray nozzles.
2 fog collectors in cabinet
Spray deposition: 1～2ml / 80cm2 • h
Spray type: Continuous / Periodic
Fog is more fine and uniform distribution
Perform a variety of salt corrosion test.
Control Panel
Temperature control and display unit
Saturated barrel temperature control and display Unit
LED display, P.I.D+S.S.R. microcomputer integrated controller
Programmable color touch display controller (option)
Safety Protection
Over temperature protection,
Water shortage protection
Over-current protection
Earth leakage protection
Our Services
3 Years Warranty, Lifelong Follow-up Services.
Training how to install and operate the machine.
Training how to maintain the machine.
Response within 24 hours once got questions from customers.
Send spare parts within 2 days after got notice.
Engineers available to service machines overseas to install and commissioning.
Our Company
Xi’an LIB Environmental Simulation Industry is a manufacturer and exporter of climatic test chambers in China. We exported the first one test chamber since 2009, it is more than 10 years we work in environmental test chambers field.
Our main products included temperature and climate test chambers, corrosion chambers, weathering testers, IP dust and rain chambers, ozone test chamber, noxious gas SO2 H2S chamber, walk-in chambers.We provide test chamber, we provide test solution. We manufacture standard and custom climatic chambers,provide effective solutions according to different requests.
Product Tags:
|
|

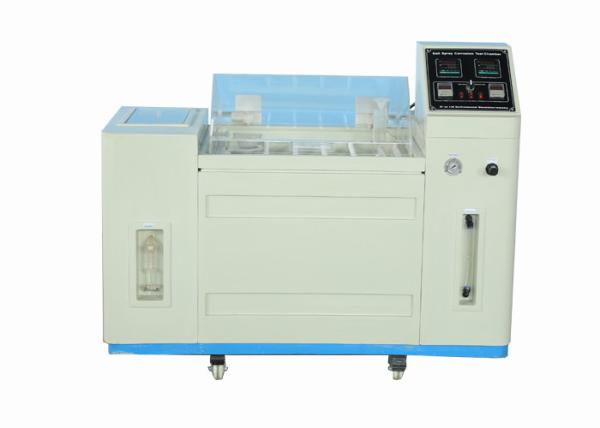

Economical Salt Spray Test Chamber / Salt Spray Environmental Simulation Chamber Images
|
